Yangzhou Hycox Industrial Co., Ltd. : Your Trustworthy Hammer Mill Manufacturer！

Founded in 2011 Yangzhou Hycox Industrial Co.,Ltd is located in Yangzhou City, Jiangsu Province, China. We are a professional Company specializing in design, research, manufacturing, sales and service. We export to different continents and regions, such as South America, Africa, Asia, Europe, and all our customers are satisfy with our: Prices, Services, Quality products.

Rich Product Variety

Our company can produce hammer mills, mixers, granulators, feeders, screw conveyors, scraper conveyors, permanent magnet sleeves, cleaners, gear rings, ring dies, etc.

Wide Sales Area

Our products are exported to different continents and regions, such as South America, Africa, Asia, Europe, etc., and we can also customize them.

Wide Range of Product Uses

Our hammer mills are used for fine grinding of grains, oil cakes and meal, especially for feed mills, biofuels, breweries, food factories, edible oil factories, etc. And series molasses mixers: specially used for mixing molasses in powdered materials, mixing uniformity CV<10%, and maximum molasses utilization rate can reach 20%.

Leading Service

We have many years of industry experience and a complete production management, quality supervision and sales service operation system. Whether you want to buy a pellet mill or an extruder, just send your needs by email and we can customize the product for you.

SWFL Series Ultra-fine Pulverizer
Feed pulverizer. SWFL Series ultra-fine pulverizer is a highly efficient pulverizer for ultra-fine grinding of raw materials in aqua-feed, pet food and feed production..
read more
Animal Feed Grinder
SWFL Series ultra-fine pulverizer can be made in carbon steel or stainless steel, according to customer request. This model is a highly efficient pulverizer for ultra-fine grinding of raw materials
read more
Fine-grinding Hammer Mill
Also called: grain Hammer mill, food hammer mill, grinding Hammer mill or high efficiency hammer mill. Hammer mills work on the principle that most materials will crush, shatter, or pulverize upon
read more

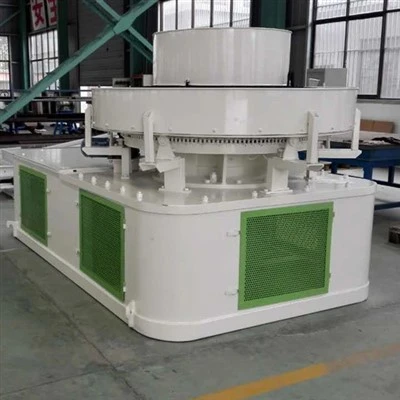

Alfalfa Pellet Mill
Alfalfa is known as the “the king of pasture”. It can grow up to 1-3 feet high. Alfalfa grows quickly and adapts to various environment. Generally, it can be reaped for 4 times a year, and 12 times
read more
Cattle Pellet Machine
Pelleting system for animal feed consists of a feeder, single or double conditioners and a pelleting machine. Pellet mill is use for processing feeds for livestock, poultry, aqua, shrimp and fish,
read more
Fish Feed Hammer Mill
Crushing feed machine. This model 56 is available of low speed configuration and double speed configuration. . Optimal hammer arrangement, increased capacity..
read more
Industrial Hammer Mill
Grinding wheat machine/Grinding food machine/Fine crusher feed machine/Fine crusher feed machine. A hammer mill is a mill whose purpose is to shred or crush aggregate material into smaller pieces by
read more
Hammer Mill for Cattle
Milling feed machine. This model 56 is available of low speed configuration and double speed configuration.. Optimal hammer arrangement, increased capacity..
read more
Animal Feed Crushing Machine
Crushing food machine. This model 56 is available of low speed configuration and double speed configuration. . Optimal hammer arrangement, increased capacity..
read more
Animal Feed Impeller Feeder
Grain impeller feeder. TWLY Series impeller feeder is a classic feeder for hammer mill in grain & oilseed processing plants, feed mills and food factories..
read more
Impeller Feeder
Oilseed impeller feeder. TWLY Series impeller feeder is a classic feeder for hammer mill in grain & oilseed processing plants, feed mills and food factories..
read more

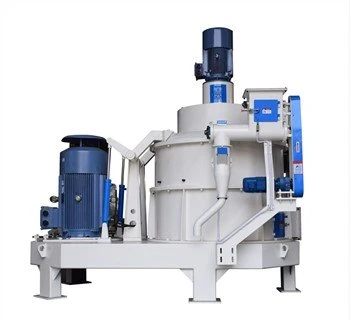

Ultra-fine Pulverizer
SWFL series vertical pulverizer is a kind of superfine pulverizing processing equipment. It is suitable for all kinds of large, medium and small feed mills.
read more

First 12 Last

What is Hammer Mill

A hammer mill is a machine used to shred or crush materials into smaller pieces. They are widely used in various industries such as agriculture, food processing, and mining. The main function of a hammer mill is to reduce the size of the material through repeated blows of hammers. These hammers are attached to a rotor that rotates at high speed, causing the material to be pulverized.

Features of Hammer Mill

Easy To Use And Maintain

In addition to the low owning and operating costs, the hammer mill is very easy to use and maintain. The material is crushed into the chamber by the gravity and the hammers which are attached to a rotating shaft. The material is crushed until it can freely get out from the opening at the bottom.

Ability To Crush Material To Different Sizes

As mentioned, the opening at the bottom of the hammer mill can be adjusted in order the operators to get the desired size of the materials. Before every operation, the opening is being manually adjusted by the operator, and as the hammer mill crushes the material, the particles that match the opening exit the crushing chamber.

Parts of Hammer Mill

Rotor
The rotor is the main rotating component of the hammer mill. It contains the hammers and provides the necessary power to crush the material. The rotor is usually made of heavy-duty steel to withstand the impact of the hammers.

Hammers
The hammers are the striking tools attached to the rotor. They come in various shapes and sizes, depending on the application and desired particle size. Some hammers have a flat surface, while others have a curved or serrated edge to enhance the grinding or shredding process.

Screen or Grates
The screen or grates are located at the bottom of the machine and determine the final product size. They control the flow of the crushed material and allow for the desired particle size to pass through. The size of the openings in the screen or grates can be adjusted to achieve different particle sizes.

Feed Hopper
The feed hopper is the entry point for the material into the hammer mill. It is designed to ensure a steady and controlled flow of material to the rotor and hammers. The size and design of the feed hopper may vary depending on the specific application and material being processed.

Discharge Chute
The discharge chute is where the final product exits the hammer mill. It is designed to direct the crushed material into a collection container or conveyor for further processing or storage.

Drive System
The drive system of a hammer mill is responsible for powering the rotor and controlling its speed. It typically consists of an electric motor, a belt or chain drive, and a gearbox or direct drive system. The drive system allows for precise control of the rotor speed, which can affect the particle size and overall efficiency of the grinding process.

Safety Features
Hammer mills are equipped with various safety features to protect the operator and prevent accidents. These may include safety guards, emergency stop buttons, and interlock systems that prevent the machine from operating when certain conditions are not met.

Types of Hammer Mill

High-Speed Hammer Mills
High-speed hammer mills are known for their ability to handle fine-grinding applications in various industries. These industries include the feed, oilseed, and biomass industries. The key feature of high-speed hammer mills is their ability to operate at a very high rotational speed, resulting in rapid and efficient impact on the material being processed.
One of the primary applications of high-speed hammer mills is in the processing of animal feed and agricultural products.

Low-Speed Hammer Mills
Low-speed hammer mills, on the other hand, are specifically designed to handle tough and fibrous materials. These mills operate at a relatively low rotational speed, which allows for a gentler impact on the material being processed.

Working Principle of Hammer Mill

Material Feeding

The material is fed into the hammer mill through a feed hopper. This can be done manually or through an automated feeding system, depending on the specific application.

High-Speed Rotation

Once the material is inside the hammer mill, the hammers attached to the rotor start rotating at high speed. The centrifugal force generated by the rotating hammers causes them to strike the material with great impact.

Impact and Pulverization

The repeated impact of the hammers on the material results in its crushing and pulverization. The high-speed rotation and the design of the hammers ensure efficient and effective pulverization of the material.

Screening and Particle Size Control

After being crushed, the material passes through a screen or grates located at the bottom of the hammer mill. This screen or grates have specific openings that allow particles of the desired size to pass through, while larger particles are retained and continue to be crushed by the hammers.

Collection of Final Product

The final product, consisting of particles of the desired size, is collected at the bottom of the hammer mill. It can be collected in a container or conveyed to another part of the production process for further processing or packaging.

How to Choose Hammer Mill

Material Being Ground

The primary factor is the type of material you’ll be processing. For softer materials like grains or wood chips, carbon steel might suffice. For tougher or more abrasive materials, consider stainless steel or high-strength alloys.

Particle Size Requirements

The desired final size of the ground material can also influence hammer selection. If you need a very fine powder, hammers with a specific design might be needed to maximize impact and particle reduction.

Production Volume and Frequency

The amount of material you process and how often will impact wear and tear on the hammers. If you have a high-volume operation, a more wear-resistant hammer material like a high-strength alloy might be a better long-term investment.

Hammer Material Options

Carbon Steel

The most widely used option, carbon steel offers a good balance of strength, affordability, and ease of fabrication. It’s a versatile choice for grinding a variety of materials like grains, feedstock, and some types of wood.

Stainless Steel

If you’re grinding materials that could cause rust or corrosion, such as food products or damp materials, stainless steel hammers are a better choice. They’re also preferred in applications where hygiene is a top priority, like food processing or pharmaceutical production.

High-Strength Alloys

For the toughest jobs, grinding highly abrasive or dense materials like minerals or construction debris, consider hammer mills with hammers made from high-strength alloys like manganese steel or tungsten carbide. These alloys offer exceptional durability and wear resistance, but they come at a higher cost.

How to Maintain Hammer Mill

Flow Directors
Flow directors help ensure that materials are guided into the path of the hammers. Circulating materials can cause abrasions to the back side of the flow directors, which will cause them to wear down and eventually require replacement. Generally, flow directors need to be changed once every 18 to 48 months, depending on your exact applications and frequency of use, to prevent catastrophic failures.

Screen Carriages
Screen carriages can experience wear and impact, causing the component to lose its form. Worn screen carriages can become problematic, especially in hammer mills used for grinding pet food or involved in aquaculture feed applications. You will want to inspect the screen carriages regularly to check for signs of wear and tear. If a screen carriage has become damaged over time, you should replace the screens to help maintain the machine's performance and reduce the risk of leaks.

Wear Liners
Wear liners in the interior of the hammer mill help create an effective seal, but they are also prone to abrasion and damage as the hammer mill operates. Though they are the longest-lasting option, even wear liners made from abrasion-resistant steel can be prone to damage after some time. You will want to keep an eye on the wear liners inside your hammer mill and replace them when you notice signs of damage that could affect the seal.

Motor Coupling
The motor coupling becomes stressed and flexed whenever you start the machine. A misaligned motor coupling can also cause the hammer mill to vibrate, resulting in unexpected damage. You should check the motor coupling and its alignment at least once every six to 12 months to ensure the elements are sound and the mounting and coupling bolts are fastened tightly.

Applications of Hammer Mill

01.

Agriculture

Hammer mills are widely used in the agriculture industry to grind grains, corn, and other crops into flour or meal. They can also be used to shred hay, straw, and silage for animal feed.

02.

Animal Feed

Hammer mills are used to produce animal feed by crushing grains, seeds, and other ingredients into smaller particles. This helps improve digestion and palatability for animals.

03.

Wood Processing

Hammer mills can be used to shred wood chips, sawdust, and other wood waste into smaller pieces for use as fuel or mulch.

04.

Recycling

Hammer mills can be used to recycle various types of waste materials such as plastic, paper, and metal. The machines break down the waste materials into smaller pieces that can be reused or recycled.

Certificate

productcate-1-1

Frequently Asked Questions

Q: What is a hammer mill, and how does it work?

A: A hammer mill is a type of impact mill characterized by the use of free-falling hammers to shatter material. It operates on the principle of impact force where hammers mounted on a rotor swing out to strike the material against a breaker plate. The material is reduced in size due to the combination of high-velocity impacts and attrition between particles.

Q: What are the key components of a hammer mill?

A: The main components of a hammer mill include the housing, rotor, hammers, screen, breaker plate, and drive system. The rotor houses the hammers and is connected to the drive system, which powers the rotation. The screen is placed at the bottom of the mill and determines the particle size of the discharge. The breaker plate is positioned opposite the hammers and receives the material as it is struck.

Q: What materials can be processed in a hammer mill?

A: A wide variety of materials can be processed in a hammer mill, including grains, seeds, wood chips, slags, and minerals. The choice of material depends on the design and configuration of the mill. Some hammer mills are specifically designed for hard, abrasive materials, while others are optimized for softer, fibrous substances.

Q: How is the particle size of the output material adjusted in a hammer mill?

A: The particle size of the material discharged from a hammer mill can be adjusted by changing the screen size, the speed of the rotor, and the number of hammers. A smaller screen will result in finer particles, whereas a larger screen allows for coarser output. Increasing the rotor speed or the number of hammers also increases the energy imparted to the material, leading to finer particles.

Q: What factors determine the capacity of a hammer mill?

A: The capacity of a hammer mill is influenced by several factors, including the rotor speed, hammer design, screen size, feed rate, and material properties. The harder and more abrasive the material, the lower the mill's capacity. Similarly, a higher feed rate may lead to lower throughput if the mill cannot process the material quickly enough.

Q: How is maintenance performed on a hammer mill?

A: Regular maintenance is crucial for the longevity and efficiency of a hammer mill. Maintenance tasks typically include replacing worn hammers and screens, checking and tightening bearings, inspecting the rotor and housing for wear, and lubricating moving parts. It's also important to ensure that the machine is kept clean and free of debris.

Q: What safety precautions should be taken when operating a hammer mill?

A: Operating a hammer mill requires strict adherence to safety protocols. These include wearing personal protective equipment such as goggles, ear protection, and dust masks. Additionally, operators should never open the housing while the mill is running and should ensure that all guards are in place. Proper lockout/tagout procedures should be followed during maintenance and cleaning.

Q: How does a hammer mill compare to other types of grinding mills?

A: Hammer mills are generally less expensive than other types of grinding mills and are simpler to operate and maintain. However, they are less efficient for fine grinding and may generate more dust than other methods like roller mills or ball mills. The choice between a hammer mill and another type of mill depends on the specific requirements of the application, including the desired particle size, throughput, and material characteristics.

Q: What are the advantages of using a hammer mill for particle reduction?

A: Hammer mills offer several advantages for particle reduction, including their ability to handle a wide range of materials, relatively low initial investment, and ease of operation. They are also capable of producing uniform particles and can be easily modified to achieve different particle sizes. Additionally, hammer mills are often more compact than other types of grinding equipment.

Q: How does moisture content affect the performance of a hammer mill?

A: The moisture content of the material being processed can significantly impact the performance of a hammer mill. Excessive moisture can cause materials to stick to the hammers and screens, reducing throughput and leading to uneven particle size. To minimize these effects, it is often necessary to pre-treat materials with high moisture content before processing them in a hammer mill.

Q: Can a hammer mill be used for both wet and dry grinding applications?

A: While most hammer mills are designed for dry grinding applications, there are specialized designs available for wet grinding. Wet grinding hammer mills typically have features like increased screen clearance and water cooling systems to manage the challenges posed by wet materials, such as increased wear and reduced throughput.

Q: How is energy consumption calculated in a hammer mill?

A: Energy consumption in a hammer mill is typically measured in terms of power input required to process a given amount of material. This can be calculated by multiplying the power consumed by the rotor (which includes the hammers and bearings) by the time it takes to process the material. Factors such as material properties, screen size, and rotor speed can all influence energy consumption.

Q: What are the environmental considerations associated with using a hammer mill?

A: Environmental considerations associated with hammer mills include noise pollution, dust generation, and energy consumption. To mitigate these impacts, operators may install soundproofing, dust collection systems, and energy-efficient motors. Additionally, proper disposal of byproducts generated during the milling process is important to prevent environmental contamination.

Q: How do hammer mills contribute to the recycling industry?

A: Hammer mills play a crucial role in the recycling industry by breaking down various types of waste materials into smaller particles that can be reused or recycled. This includes plastics, metals, glass, and construction materials. By reducing the size of waste materials, hammer mills make it easier and more cost-effective to repurpose these materials into new products.

Q: What are the common applications of hammer mills in the food industry?

A: In the food industry, hammer mills are commonly used for grinding cereals, legumes, spices, and nuts into flour or meal. They can also be used to produce coarse particles for use in soups, stews, and other dishes. Additionally, hammer mills are sometimes used in the production of animal feeds, where they grind grains and other ingredients into a suitable size for livestock consumption.

Q: How do hammer mills differ from roller mills in terms of operation and performance?

A: Hammer mills and roller mills are both commonly used for size reduction tasks in various industries. However, they differ in terms of operation and performance. Hammer mills operate using high-speed impact forces to break down materials, resulting in a wide range of particle sizes. Roller mills, on the other hand, use a combination of compression and shearing forces to produce more uniform particles. Roller mills are generally more efficient for fine grinding and tend to generate less dust than hammer mills.

Q: What factors should be considered when selecting a hammer mill for a specific application?

A: When selecting a hammer mill for a specific application, several factors should be considered, including the physical properties of the material being processed (such as hardness, abrasion resistance, and moisture content), the desired particle size distribution, throughput requirements, and any special handling or disposal considerations. Other factors that may influence the decision include space constraints, budget limitations, and the availability of maintenance and support services.

Q: How does the design of a hammer mill affect its efficiency and performance?

A: The design of a hammer mill has a significant impact on its efficiency and performance. Factors such as rotor speed, hammer weight and shape, screen size and configuration, and the overall layout of the mill can all affect throughput, particle size distribution, energy consumption, and maintenance requirements. Optimizing these design parameters can help improve the efficiency and performance of a hammer mill for specific applications.

Q: What are the potential challenges associated with using a hammer mill?

A: Potential challenges associated with using a hammer mill include excessive wear on hammers and screens due to high-impact forces and abrasive materials; reduced throughput and uneven particle size distribution caused by material blockages or damp conditions; and noise and dust pollution, which can impact operator safety and the surrounding environment. Addressing these challenges often involves regular maintenance and adjustment of the mill's operating parameters.

We're professional hammer millmanufacturers and suppliers in China, specialized in providing high quality customized products. We warmly welcome you to buy discount hammer mill made in China here from our factory. Contact us for quotation.

high speed hammer mill, hammer mill housings, hammer mill motors
